Flutter App RootBeer Root Detection Bypass
RootBeer Root Detection Bypass in Flutter Application
Target Package: https://pub.dev/packages/root_checker_plus

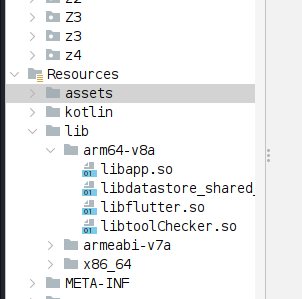

We had a target application com.mysafebank.package (redacted). We opened our target application into jadx-gui . Inside lib , there was libapp.so and libflutter.so, which made us clear that application is developed with flutter framework.

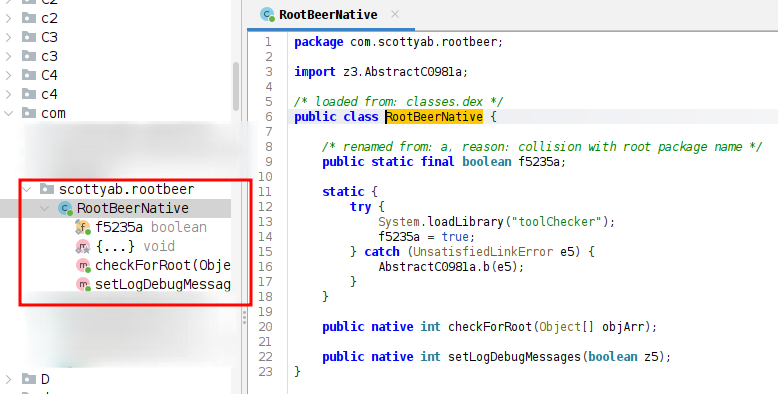

Looking futher we found RootBeer.
Analysing further, we found out that it was using the flutter package: https://pub.dev/packages/root_checker_plus
At very first, we decompiled our target application with apktool.
1
apktool d com.mysafebank.package.apk

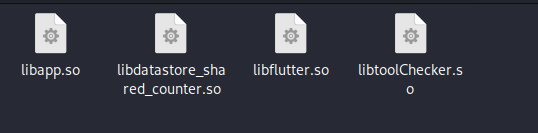

Then, looking inside ~/com.mysafebank.package.apk/lib/arm64-v8a/ ,
We disassemble the libapp.so using blutter and searched for root_checker_plus.dart.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
// lib: root_checker_plus, url: package:root_checker_plus/root_checker_plus.dart
// class id: 1049842, size: 0x8
class :: {
}
// class id: 499, size: 0x8, field offset: 0x8
abstract class RootCheckerPlus extends Object {
static _ isRootChecker(/* No info */) async {
// ** addr: 0x639f70, size: 0x70
// 0x639f70: EnterFrame
// 0x639f70: stp fp, lr, [SP, #-0x10]!
// 0x639f74: mov fp, SP
// 0x639f78: AllocStack(0x28)
// 0x639f78: sub SP, SP, #0x28
// 0x639f7c: SetupParameters()
// 0x639f7c: stur NULL, [fp, #-8]
// 0x639f80: CheckStackOverflow
// 0x639f80: ldr x16, [THR, #0x48] ; THR::stack_limit
// 0x639f84: cmp SP, x16
// 0x639f88: b.ls #0x639fd8
// 0x639f8c: InitAsync() -> Future<bool?>
// 0x639f8c: add x0, PP, #8, lsl #12 ; [pp+0x8f10] TypeArguments: <bool?>
// 0x639f90: ldr x0, [x0, #0xf10]
// 0x639f94: bl #0x3baea8 ; InitAsyncStub
// 0x639f98: r16 = <bool>
// 0x639f98: ldr x16, [PP, #0x1840] ; [pp+0x1840] TypeArguments: <bool>
// 0x639f9c: r30 = Instance_MethodChannel
// 0x639f9c: add lr, PP, #0x1c, lsl #12 ; [pp+0x1c340] Obj!MethodChannel@937d01
// 0x639fa0: ldr lr, [lr, #0x340]
// 0x639fa4: stp lr, x16, [SP, #8]
// 0x639fa8: r16 = "isRootChecker"
// 0x639fa8: add x16, PP, #0x1c, lsl #12 ; [pp+0x1c348] "isRootChecker"
// 0x639fac: ldr x16, [x16, #0x348]
// 0x639fb0: str x16, [SP]
// 0x639fb4: r4 = const [0x1, 0x2, 0x2, 0x2, null]
// 0x639fb4: ldr x4, [PP, #0x48] ; [pp+0x48] List(5) [0x1, 0x2, 0x2, 0x2, Null]
// 0x639fb8: r0 = invokeMethod()
// 0x639fb8: bl #0x86c040 ; [package:flutter/src/services/platform_channel.dart] MethodChannel::invokeMethod
// 0x639fbc: mov x1, x0
// 0x639fc0: stur x1, [fp, #-0x10]
// 0x639fc4: r0 = Await()
// 0x639fc4: bl #0x3bac68 ; AwaitStub
// 0x639fc8: cmp w0, NULL
// 0x639fcc: b.ne #0x639fd4
// 0x639fd0: r0 = false
// 0x639fd0: add x0, NULL, #0x30 ; false
// 0x639fd4: r0 = ReturnAsync()
// 0x639fd4: b #0x3ef968 ; ReturnAsyncStub
// 0x639fd8: r0 = StackOverflowSharedWithoutFPURegs()
// 0x639fd8: bl #0x8d5080 ; StackOverflowSharedWithoutFPURegsStub
// 0x639fdc: b #0x639f8c
}
}
On analyzing the script,
1
2
0x639fc8: cmp w0, NULL
0x639fcc: b.ne #0x639fd4
If we update the b.ne to perform NOP instruction, we might can bypass the root detection.
We use frida for patching in runtime. We wrote simple script and started the application by hooking with frida and successfully bypassed the root detection.
1
2
3
4
5
6
7
8
9
10
11
12
13
Process.attachModuleObserver({
onAdded: function(module) {
if (module.name === "libapp.so") {
const branch_offset = 0x639fcc;
const branch_addr = module.base.add(branch_offset);
console.log("Changing memory permissions");
Memory.protect(branch_addr, 4, 'rwx');
console.log("Overwriting instruction");
branch_addr.writeByteArray([0x1F, 0x20, 0x03, 0xD5]);
}
},
onRemoved: function(module) {}
})
We can run this script frida -U -f 'com.mysafebank.package' -l rootBypassScript.js
